plotSetOutlineEnabled¶

Purpose¶

Turns on an outline around the plot.

Format¶

plotSetOutlineEnabled(&myPlot, enabled)¶

Parameters:	&myPlot (struct pointer) – A `plotControl` structure pointer. enabled (scalar) – A 0 to hide the outline, or a 1 to show it.

Examples¶

// Declare plotControl structure
struct plotControl myPlot;

// Initialize plotControl structure
myPlot = plotGetDefaults("scatter");

// Turn on plot outline
plotSetOutlineEnabled(&myPlot, 1);

// Create data
x = seqa(0.1, 1, 50);
y = sin(x)~cos(x);

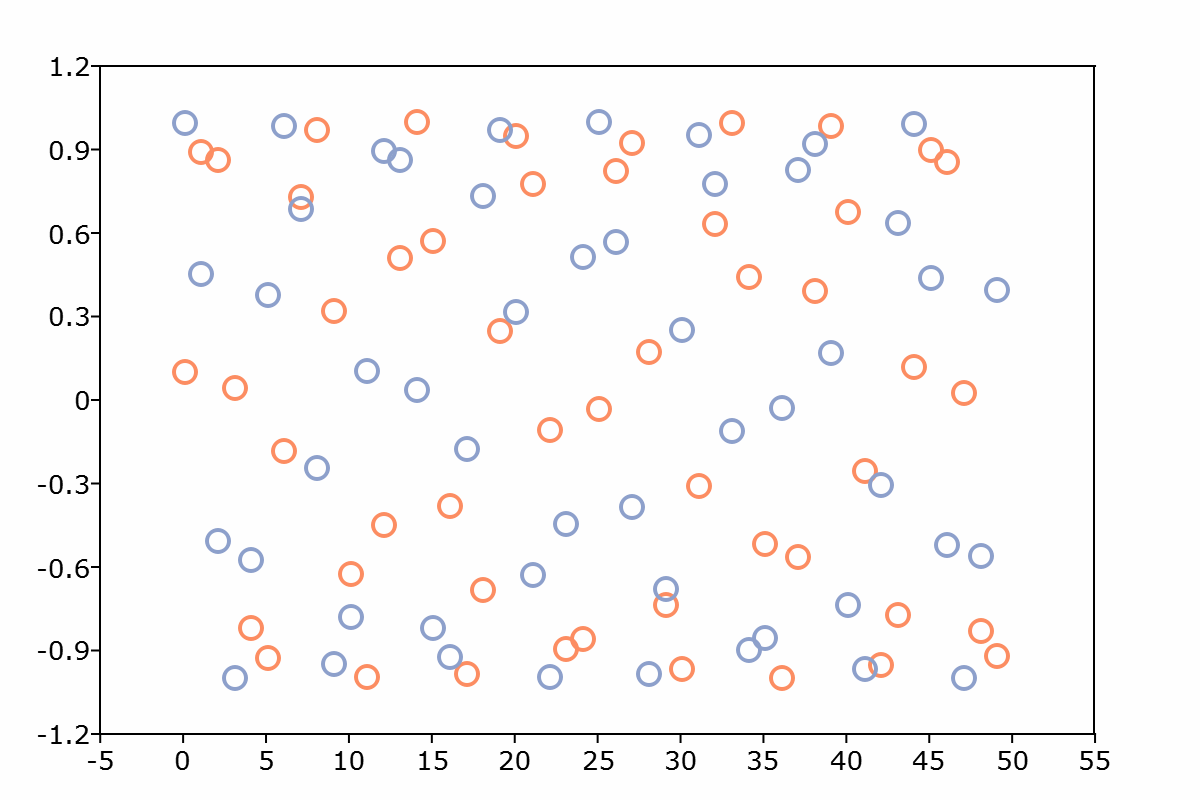

// Plot the data with outline enabled.
plotScatter(myPlot, x, y);

Remarks¶

Note

This function sets an attribute in a plotControl structure. It does not affect an existing graph, or a new graph drawn using the default settings that are accessible from the Tools > Preferences > Graphics menu.
